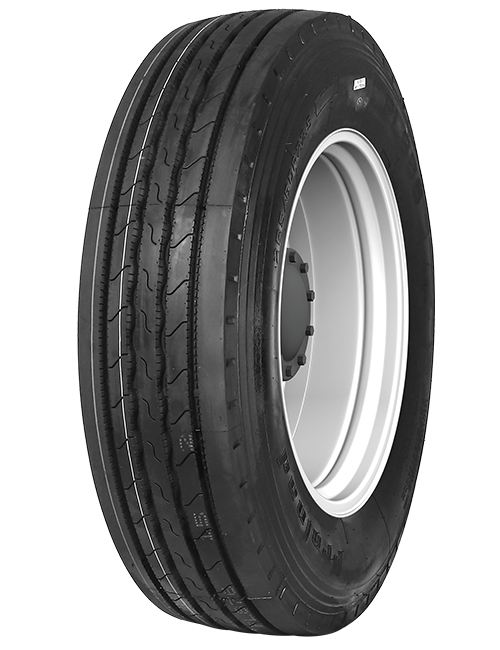

TBR TIRE
FD810
Features:
Closed shoulder with four longitudinal grooves improve the strength of the shoulder and ensure exccllent handling.
Unique tread compound for better wear resistance and low rolling resistance.
Energy saving and better fuel efficiency.
Suitable for:
Suitable for steer and trailer position of truck and all wheel position of bus, medium
and long distance transportation, good paved road conditions and highway.
Description
TYRE SIZE | PLY RATING | LOAD INDEX | SPEED SYMBOL | STANDARD RIM | TREAD DEPTH (mm) | OVERALL DIAMETER (mm) | SECTION WIDTH (mm) | MAX LOAD (single/dual) (kg) | MAX PRESSURE (single/dual) (kpa) |
| 11R22.5 | 18 | 149/146 | L | 8.25 | 15.0 | 1054 | 279 | 3250/3000 | 930/930 |
| 11R24.5 | 18 | 152/149 | L | 9.00 | 14.5 | 1104 | 279 | 3550/3250 | 930/930 |
| 315/80R22.5 | 20 | 156/153 | K | 9.00 | 16 | 1076 | 312 | 4000/3650 | 900/900 |
